Calipers with dial or digital display

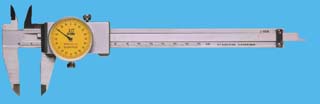

Integrated Dial Caliper

.4-way measurements.

.Integrated Dial.

.Made of stainless steel.

.No-through slot.　
Item Number  Range (mm) Jaw Length(mm) Vernier (mm)
180-212S 0-150 40 0.02
180-213S 0-200 50 0.02
180-214S 0-300 60 0.02
186-212S 0-150 40 0.01
186-213S 0-200 50 0.01
186-214S 0-300 60 0.01
181-212S 0-6" 1.8" 0.001"
181-213S 0-8" 2" 0.001"
181-214S 0-12" 2.4" 0.001"
185-212S 0-6" 1.8" 0.0005"
185-213S 0-8" 2" 0.0005"
185-214S 0-12" 2.4" 0.0005"

　

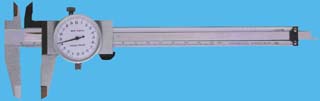

Dial Caliper

.4-way measurements

.White dial with black number

.Made of stainless steel

.No-through slot.
Item Number  Range (mm) Jaw Length(mm) Vernier (mm)
180-312S 0-150 40 0.02
180-313S 0-200 50 0.02
180-314S 0-300 60 0.02
186-312S 0-150 40 0.01
186-313S 0-200 50 0.01
186-314S 0-300 60 0.01
181-312S 0-6" 1.8" 0.001"
181-313S 0-8" 2" 0.001"
181-314S 0-12" 2.4" 0.001"
185-312S 0-6" 1.8" 0.0005"
185-313S 0-8" 2" 0.0005"
185-314S 0-12" 2.4" 0.0005"

　

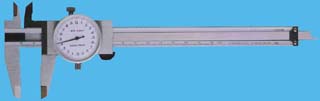

Dial Caliper

.4-way measurements.

.White dial with black number.

.Made of stainless steel.

.Through slot.
Item Number  Range (mm) Jaw Length(mm) Vernier (mm)
180-112S 0-150 40 0.02
180-113S 0-200 50 0.02
180-114S 0-300 60 0.02
186-112S 0-150 40 0.01
186-113S 0-200 50 0.01
186-114S 0-300 60 0.01
181-112S 0-6" 1.8" 0.001"
181-113S 0-8" 2" 0.001"
181-114S 0-12" 2.4" 0.001"
185-112S 0-6" 1.8" 0.0005"
185-113S 0-8" 2" 0.0005"
185-114S 0-12" 2.4" 0.0005"

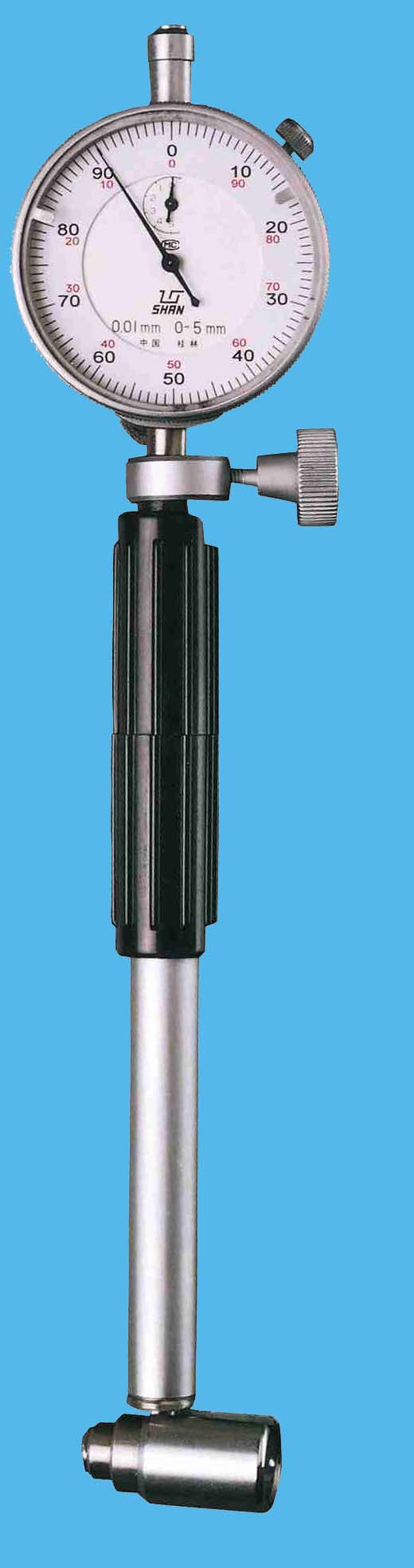

Dial Bore Gauge

.For internal measurements.

.Steel-harden-tipped contact point for

 excellent durability.

.Changeable anvils for wide measuring ranges.

.Equipped with dial indicator.

.Gauges with different ranges have different

 measuring anvils.
Item Number  Range (mm) Graduation (mm)
570-205 ф10-18 0.01
570-210 ф18-35 0.01
570-215 ф35-50 0.01
570-220 ф50-100 0.01
570-225 ф50-160 0.01
570-230 ф100-160 0.01
570-235 ф160-250 0.01
570-240 ф20-200 0.01
571-240 ф20-200 0.01

　

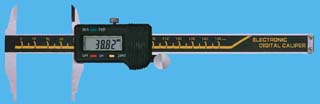

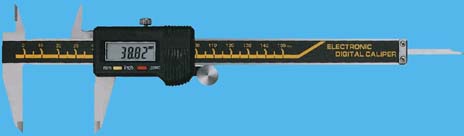

Auto Power Off Digital Caliper

.Four-way measurements.

.Without thumb wheel for range 75mm and 100mm.

.Auto power off.

.Zero setting at any position.

.Metric/Inch system conversion at any position.

.With data output interface.
Item Number  Range (mm) Jaw Length(mm) Resolution (mm)
110-205 0-75 30 0.01
110-210 0-100 30 0.01
110-220 0-150 40 0.01
110-225 0-200 50 0.01
110-235 0-300 60 0.01

　

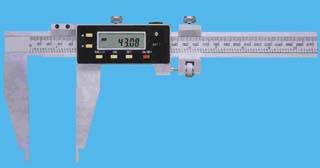

Digital Caliper(Type III)

.Manual power on/off.

.Metric/Inch system interchange.

.Zero setting at any position.

.With data output interface.

.With upper outside jaws.
Item Number  Range (mm) Jaw Length(mm) Resolution (mm)
112-325 0-200 60 0.01
112-335 0-300 60 0.01

　

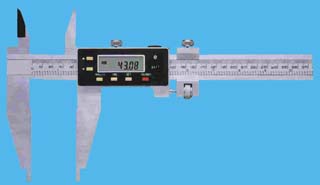

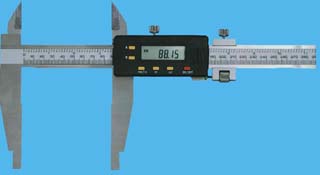

Digital Caliper(Type III)

.Manual power on/off.

.Metric/Inch system interchange.

.Zero setting at any position.

.With data output interface.

.With upper outside jaws.

.With Maximum and Minimum measuring

 value checking  function .
Item Number  Range (mm) Jaw Length(mm) Resolution (mm)
112-550 0-500/20" 100/125/150 0.01
112-555 0-600/24" 100/125/150 0.01
112-560 0-800/32" 125/150/200 0.01
112-565 0-1000/40" 125/150/200 0.01
112-570 0-1500/60" 125/150/200 0.01
112-575 0-2000/80" 150/200/300 0.01
112-580 0-2500/100" 150/200/300 0.01
112-585 0-3000/120" 150/200/300 0.01

　

Digital Caliper(Type IV)

.Manual power on/off.

.Metric/Inch system interchange.

.Zero setting at any position.

.With data output interface.

.With Maximum and Minimum measuring

 value checking  function .

.With step measurement.
Item Number  Range (mm) Jaw Length(mm) Resolution (mm)
113-550 0-500/20" 100/125/150 0.01
113-555 0-600/24" 100/125/150 0.01
113-560 0-800/32" 125/150/200 0.01
113-565 0-1000/40" 125/150/200 0.01
113-570 0-1500/60" 125/150/200 0.01
113-575 0-2000/80" 150/200/300 0.01
113-580 0-2500/100" 150/200/300 0.01
113-585 0-3000/120" 150/200/300 0.01

　

　

Digital Caliper(Type V)

.Manual power on/off.

.Metric/Inch system interchange.

.Zero setting at any position.

.With data output interface.

.With Maximum and Minimum measuring

 value checking  function .

.With upper inside jaws.
Item Number  Range (mm) Jaw Length(mm) Resolution (mm)
114-550 0-500/20" 100/125/150 0.01
114-555 0-600/24" 100/125/150 0.01
114-560 0-800/32" 125/150/200 0.01
114-565 0-1000/40" 125/150/200 0.01
114-570 0-1500/60" 125/150/200 0.01
114-575 0-2000/80" 150/200/300 0.01
114-580 0-2500/100" 150/200/300 0.01
114-585 0-3000/120" 150/200/300 0.01
　
