Calipers

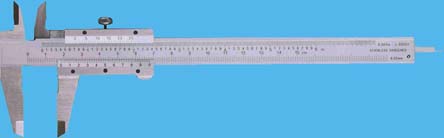

Vernier Caliper(Type I)
.4-way measurements
.Open vernier
.Made of carbon steel or stainless
steel
|
|
Item
Number(stainless steel) |
Item
Number (carbon steel) |
Range
(mm) |
Jaw
Length(mm) |
Vernier
(mm) |
141-510S |
141-510C |
0-100 |
30 |
0.05 |
141-515S |
141-515C |
0-125 |
40 |
0.05 |
141-520S |
141-520C |
0-150 |
40 |
0.05 |
141-525S |
141-525C |
0-200 |
50 |
0.05 |
141-530S |
141-530C |
0-250 |
60 |
0.05 |
141-535S |
141-535C |
0-300 |
60 |
0.05 |
141-110S |
141-110C |
0-100 |
30 |
0.02 |
141-115S |
141-115C |
0-125 |
40 |
0.02 |
141-120S |
141-120C |
0-150 |
40 |
0.02 |
141-125S |
141-125C |
0-200 |
50 |
0.02 |
141-130S |
141-130C |
0-250 |
60 |
0.02 |
141-135S |
141-135C |
0-300 |
60 |
0.02 |
141-610S |
141-610C |
0-100 |
30 |
0.05/1/128" |
141-615S |
141-615C |
0-125 |
40 |
0.05/1/128" |
141-620S |
141-620C |
0-150 |
40 |
0.05/1/128" |
141-625S |
141-625C |
0-200 |
50 |
0.05/1/128" |
141-630S |
141-630C |
0-250 |
60 |
0.05/1/128" |
141-635S |
141-635C |
0-300 |
60 |
0.05/1/128" |
141-210S |
141-210C |
0-100 |
30 |
0.02/0.001" |
141-215S |
141-215C |
0-125 |
40 |
0.02/0.001" |
141-220S |
141-220C |
0-150 |
40 |
0.02/0.001" |
141-225S |
141-225C |
0-200 |
50 |
0.02/0.001" |
141-230S |
141-230C |
0-250 |
60 |
0.02/0.001" |
141-235S |
141-235C |
0-300 |
60 |
0.02/0.001" |
Monoblock Vernier Caliper(Type II)
.With
fine adjustment
.Without
depth bar
.Mono-block
vernier
.Made
of carbon steel or stainless
steel
|
|
Item
Number(stainless steel) |
Item
Number (carbon steel) |
Range
(mm) |
Jaw
Length(mm) |
Vernier
(mm) |
146-520S |
146-520C |
0-150 |
40 |
0.05 |
146-525S |
146-525C |
0-200 |
60 |
0.05 |
146-530S |
146-530C |
0-250 |
60 |
0.05 |
146-535S |
146-535C |
0-300 |
60 |
0.05 |
146-550S |
146-550C |
0-500 |
100 |
0.05 |
146-120S |
146-120C |
0-150 |
40 |
0.02 |
146-125S |
146-125C |
0-200 |
60 |
0.02 |
146-130S |
146-130C |
0-250 |
60 |
0.02 |
146-135S |
146-135C |
0-300 |
60 |
0.02 |
146-150S |
146-150C |
0-500 |
100 |
0.02 |
146-620S |
146-620C |
0-150 |
40 |
0.05/1/128" |
146-625S |
146-625C |
0-200 |
60 |
0.05/1/128" |
146-630S |
146-630C |
0-250 |
60 |
0.05/1/128" |
146-635S |
146-635C |
0-300 |
60 |
0.05/1/128" |
146-650S |
146-650C |
0-500 |
100 |
0.05/1/128" |
146-220S |
146-220C |
0-150 |
40 |
0.02/0.001" |
146-225S |
146-225C |
0-200 |
60 |
0.02/0.001" |
146-230S |
146-230C |
0-250 |
60 |
0.02/0.001" |
146-235S |
146-235C |
0-300 |
60 |
0.02/0.001" |
146-250S |
146-250C |
0-500 |
100 |
0.02/0.001" |

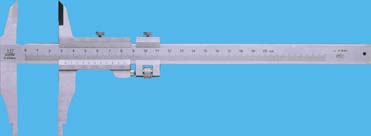

Monoblock Vernier Caliper(Type III)
.With fine adjustment
.With upper outside jaws
.Mono-block vernier, without depth
bar
.Made of carbon steel or stainless
steel
|
|
Item
Number(stainless steel) |
Item
Number (carbon steel) |
Range
(mm) |
Jaw
Length(mm) |
Vernier
(mm) |
148-525S |
148-525C |
0-200 |
60 |
0.05 |
148-535S |
148-535C |
0-300 |
60 |
0.05 |
148-550S |
148-550C |
0-500 |
100 |
0.05 |
148-555S |
148-555C |
0-600 |
100 |
0.05 |
148-560S |
148-560C |
0-800 |
125 |
0.05 |
148-565S |
148-565C |
0-1000 |
125 |
0.05 |
148-570S |
148-570C |
0-1500 |
125 |
0.05 |
148-575S |
148-575C |
0-2000 |
125 |
0.05 |
148-125S |
148-125C |
0-200 |
60 |
0.02 |
148-135S |
148-135C |
0-300 |
60 |
0.02 |
148-150S |
148-150C |
0-500 |
100 |
0.02 |
148-155S |
148-155C |
0-600 |
100 |
0.02 |
148-160S |
148-160C |
0-800 |
125 |
0.02 |
148-165S |
148-165C |
0-1000 |
125 |
0.02 |
148-170S |
148-170C |
0-1500 |
125 |
0.02 |
148-175S |
148-175C |
0-2000 |
125 |
0.02 |
148-625S |
148-625C |
0-200 |
60 |
0.05/1/128" |
148-635S |
148-635C |
0-300 |
60 |
0.05/1/128" |
148-650S |
148-650C |
0-500 |
100 |
0.05/1/128" |
148-655S |
148-655C |
0-600 |
100 |
0.05/1/128" |
148-660S |
148-660C |
0-800 |
125 |
0.05/1/128" |
148-665S |
148-665C |
0-1000 |
125 |
0.05/1/128" |
148-670S |
148-670C |
0-1500 |
125 |
0.05/1/128" |
148-675S |
148-675C |
0-2000 |
125 |
0.05/1/128" |
148-225S |
148-225C |
0-200 |
60 |
0.02/0.001" |
148-235S |
148-235C |
0-300 |
60 |
0.02/0.001" |
148-250S |
148-250C |
0-500 |
100 |
0.02/0.001" |
148-255S |
148-255C |
0-600 |
100 |
0.02/0.001" |
148-260S |
148-260C |
0-800 |
125 |
0.02/0.001" |
148-265S |
148-265C |
0-1000 |
125 |
0.02/0.001" |
148-270S |
148-270C |
0-1500 |
125 |
0.02/0.001" |
148-275S |
148-275C |
0-2000 |
125 |
0.02/0.001" |
Vernier Caliper(Type IV)
.With fine adjustment
.Without upper jaws
.Mono-block vernier, without depth bar
.Made of carbon steel or stainless
steel
|
|
Item
Number (stainless steel) |
Item
Number (carbon steel) |
Range
(mm) |
Jaw
Length(mm) |
Vernier
(mm) |
150-525S |
150-525C |
0-200 |
60 |
0.05 |
150-535S |
150-535C |
0-300 |
60 |
0.05 |
150-550S |
150-550C |
0-500 |
100 |
0.05 |
150-555S |
150-555C |
0-600 |
100 |
0.05 |
150-560S |
150-560C |
0-800 |
125 |
0.05 |
150-565S |
150-565C |
0-1000 |
125 |
0.05 |
150-570S |
150-570C |
0-1500 |
125 |
0.05 |
150-575S |
150-575C |
0-2000 |
125 |
0.05 |
150-125S |
150-125C |
0-200 |
60 |
0.02 |
150-135S |
150-135C |
0-300 |
60 |
0.02 |
150-150S |
150-150C |
0-500 |
100 |
0.02 |
150-155S |
150-155C |
0-600 |
100 |
0.02 |
150-160S |
150-160C |
0-800 |
125 |
0.02 |
150-165S |
150-165C |
0-1000 |
125 |
0.02 |
150-170S |
150-170C |
0-1500 |
125 |
0.02 |
150-175S |
150-175C |
0-2000 |
125 |
0.02 |
150-625S |
150-625C |
0-200 |
60 |
0.05/1/128" |
150-635S |
150-635C |
0-300 |
60 |
0.05/1/128" |
150-650S |
150-650C |
0-500 |
100 |
0.05/1/128" |
150-655S |
150-655C |
0-600 |
100 |
0.05/1/128" |
150-660S |
150-660C |
0-800 |
125 |
0.05/1/128" |
150-665S |
150-665C |
0-1000 |
125 |
0.05/1/128" |
150-670S |
150-670C |
0-1500 |
125 |
0.05/1/128" |
150-675S |
150-675C |
0-2000 |
125 |
0.05/1/128" |
150-225S |
150-225C |
0-200 |
60 |
0.02/0.001" |
150-235S |
150-235C |
0-300 |
60 |
0.02/0.001" |
150-250S |
150-250C |
0-500 |
100 |
0.02/0.001" |
150-255S |
150-255C |
0-600 |
100 |
0.02/0.001" |
150-260S |
150-260C |
0-800 |
125 |
0.02/0.001" |
150-265S |
150-265C |
0-1000 |
125 |
0.02/0.001" |
150-270S |
150-270C |
0-1500 |
125 |
0.02/0.001" |
150-275S |
150-275C |
0-2000 |
125 |
0.02/0.001" |

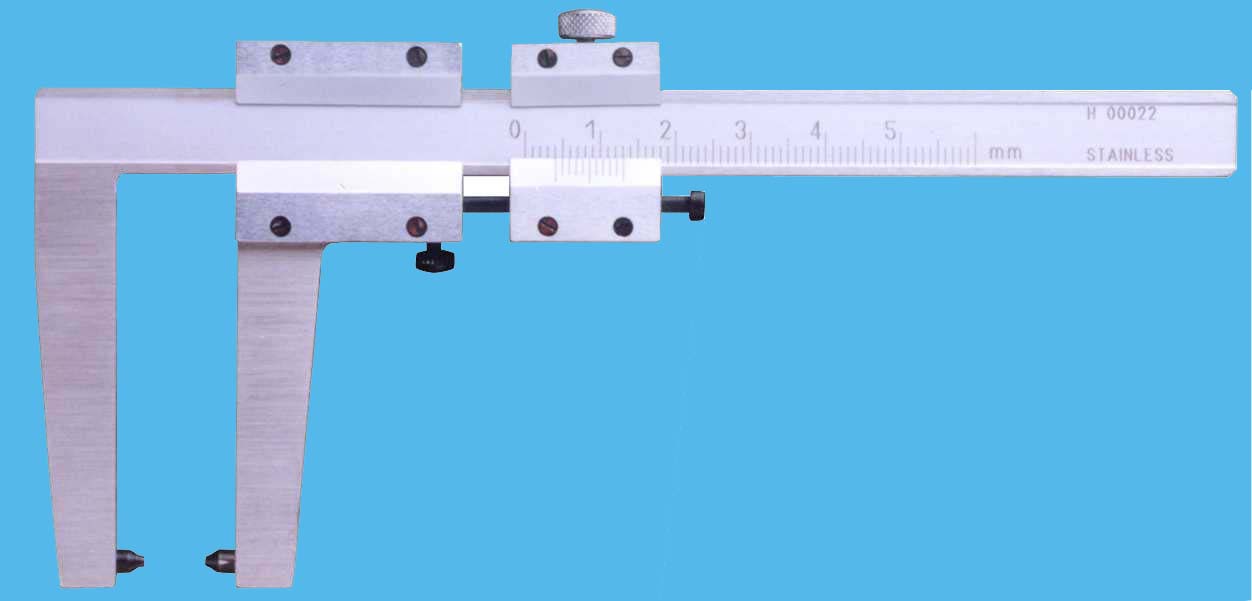

Vernier Caliper With Points
.Made of stainless steel.
|
|
Item
Number |
Range
(mm) |
Vernier
(mm) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
H(mm) |
L(mm) |
163-300 |
0-50 |
0.1 |
51.5 |
11.5 |
3.5 |
11.5 |
12.5 |
160 |

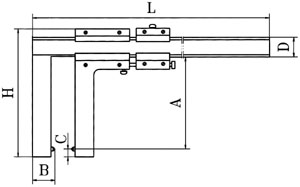

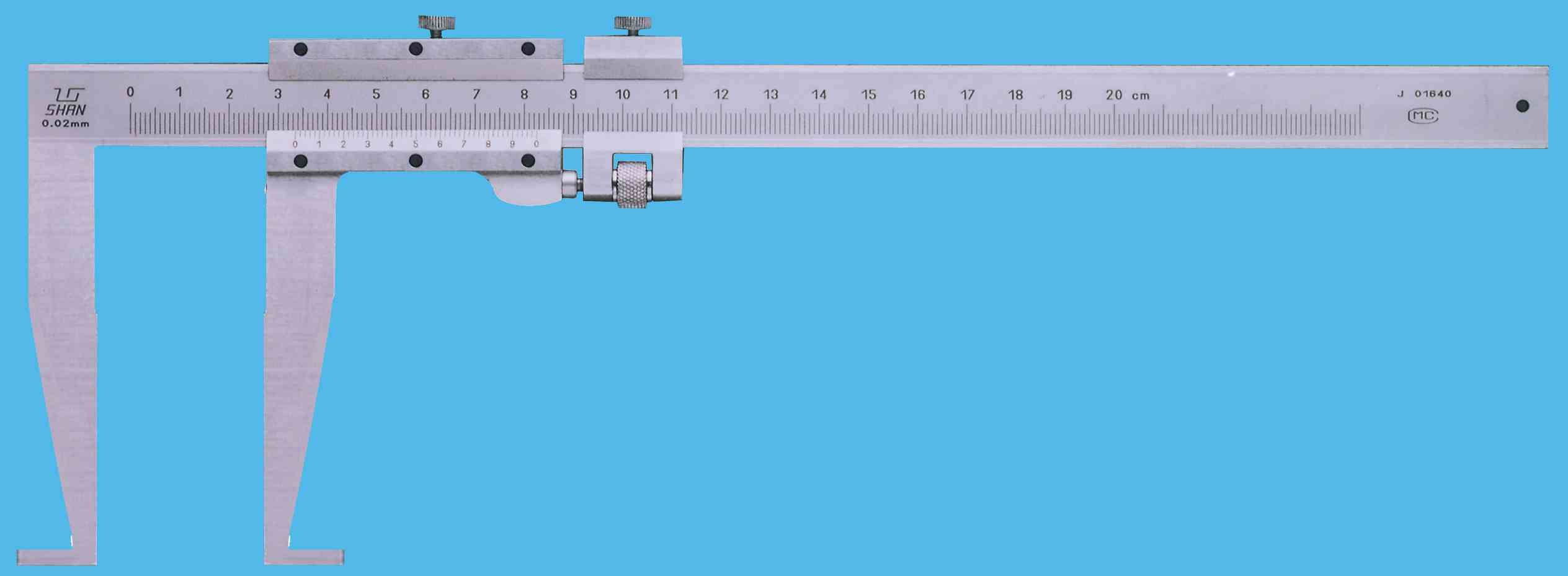

Inside Groove Vernier Caliper
.With double scale which means it
has two kinds of
measurements,one is for
normal outside
measurements and
the other is for inside groove
measurements.
.With fine adjustment.
|
|
Item
Number |
Inside
Meas. Range (mm) |
Outside
Meas. Range (mm) |
Vernier
(mm) |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
H(mm) |
L(mm) |
157-535 |
40-340 |
0-300 |
0.05 |
95 |
40 |
5 |
17 |
117 |
410 |
157-135 |
40-340 |
0-300 |
0.02 |
95 |
40 |
5 |
17 |
117 |
410 |
157-635 |
1.6"-13.6" |
0-12" |
1/128" |
95 |
40 |
5 |
17 |
117 |
410 |
157-235 |
1.6"-13.6" |
0-12" |
0.001" |
95 |
40 |
5 |
17 |
117 |
410 |
157-550 |
60-560 |
0-500 |
0.05 |
150 |
60 |
5 |
25 |
181.5 |
660 |
157-150 |
60-560 |
0-500 |
0.02 |
150 |
60 |
5 |
25 |
181.5 |
660 |
157-650 |
2.4"-22.4" |
0-20" |
1/128" |
150 |
60 |
5 |
25 |
181.5 |
660 |
157-250 |
2.4"-22.4" |
0-20" |
0.001" |
150 |
60 |
5 |
25 |
181.5 |
660 |
|
